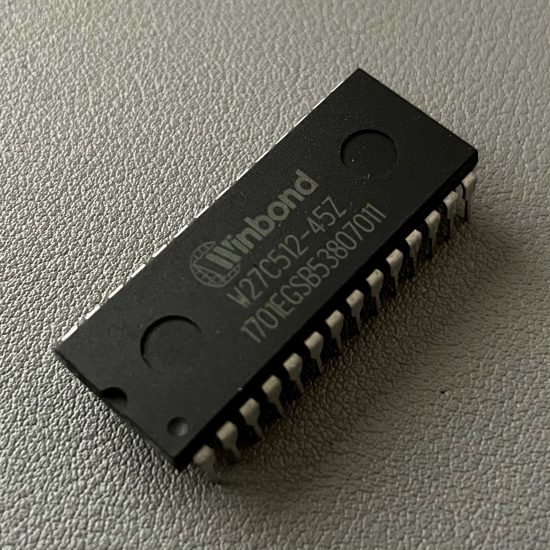

Winbond W27C512-45Z EEPROM

64K x 8 Electrically Erasable EPROM

General Description:

The W27C512 is a high speed, low power Electrically Erasable and Programmable Read Only Memory organized as 65536 x 8 bits that operates on a single 5 volt power supply. The W27C512 provides an electrical chip erase function.

Datasheet – W27C512

Features:

• High speed access time: 45nS
• Read operating current: 30 mA (max.)
• Erase/Programming operating current: 30mA (max.)
• Standby current: 1mA (max.)
• Single 5V power supply
• +14V erase / +12V programming voltage
• Fully static operation
• All inputs and outputs directly TTL / CMOS compatible
• Three-state outputs
• 28-pin 600 mil DIP package.
