ST M27512-2F1 EPROM

$2.95

The M27512 is a 524,288 bit UV erasable and electrically programmable memory EPROM. It is organized as 65,536 words by 8 bits.

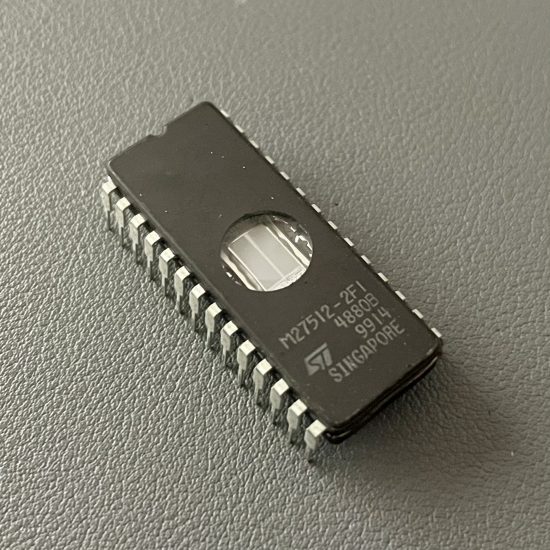

The M27512 is housed in a 28 Pin Window Ceramic Grit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Datasheet – M27512-2F1

NMOS 512 Kbit (64Kb x 8) UV EPROM

General Description:

The M27512 is a 524,288 bit UV erasable and electrically programmable memory EPROM. It is organized as 65,536 words by 8 bits.

The M27512 is housed in a 28 Pin Window Ceramic Grit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Datasheet – M27512-2F1

Features:

  • Fast Access Time: 200ns
  • Extended Temperature Range
  • Single 5V Supply voltage
  • Low Standby Current: 40mA max
  • TTL Compatible during Read and Program
  • Fast Programming Algorithm
  • Electronic Signature
  • Programming Voltage: 12V





Weight 2 oz
Dimensions 2 × 1 × 1 in
