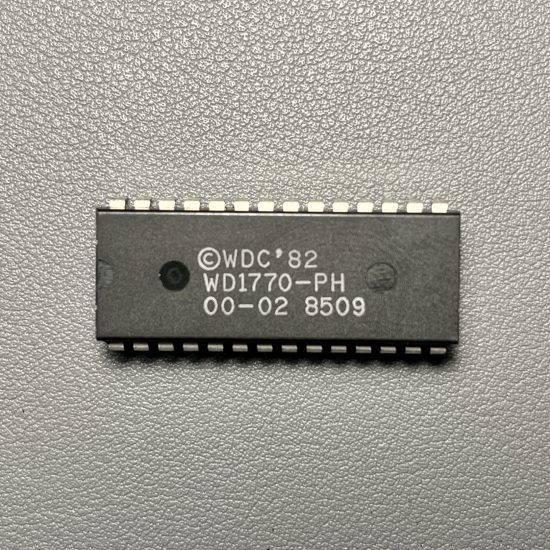

WD1770 Floppy Disk Controller

Name: WD1770 Floppy Disk Controller
SKU: DIY-WD1770
Price: 19.95 USD
Availability: InStock

$19.95

The WD1770 is a MOS/LSI device which performs the functions of a Floppy Disk Controller / Formatter.

SKU: DIY-WD1770 Category: Electronic Components Tags: 158, 1581, 1581 floppy controller, 1581 u4, 1770, 6264, 6264 sram, c64, c64 sram, c64c, cmos sram, commodore 64, floppy controller, u4, wd1770

The WD1770 is a MOS/LSI device which performs the functions of a Floppy Disk Controller / Formatter.

Features

28 PIN DIP
SINGLE 5V SUPPLY
BUILT-IN DATA SEPARATOR
BUILT-IN NWRITE PRECOMPENSATION
MOTOR CONTROL
128, 256, 512 OR 1024 SECTOR LENGTHS
TTL COMPATIBLE
8 BIT BIDIRECTIONAL DATA BUS

Weight	2 oz
Dimensions	1.25 × .75 × 1 in

Datasheet

WD1770-WesternDigital

Reviews

There are no reviews yet.

Be the first to review “WD1770 Floppy Disk Controller”
