Arduino Through Hole Edition DIY Kit

$9.95$39.95

Arduino UNO is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

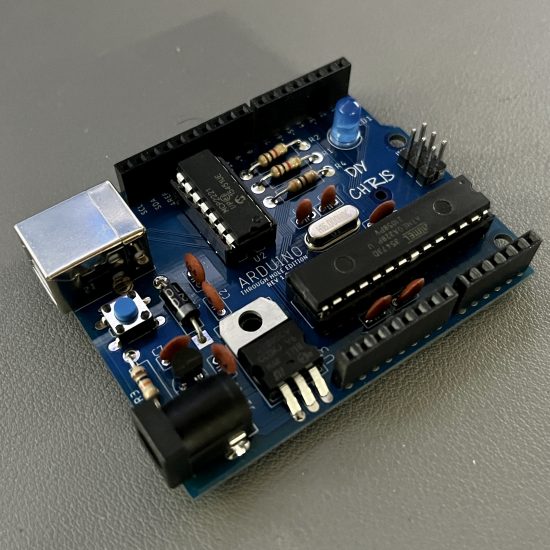

The Arduino Through Hole Edition is a special version of the Arduino UNO that can be built using nothing but through hole components, making it a perfect DIY kit for anyone looking to brush up on their soldering skills while building a useful device that can be used to build many more fun projects.

For additional support / questions feel free to join our Discord server.

Weight 5 oz
Dimensions 4 × 3 × 1 in
Options

Full Kit (Includes ATMEGA328P), Partial Kit (No ATMEAGE328P), PCB Only

DIY Kit

Yes (You build it), No (Built by DIYCHRIS)

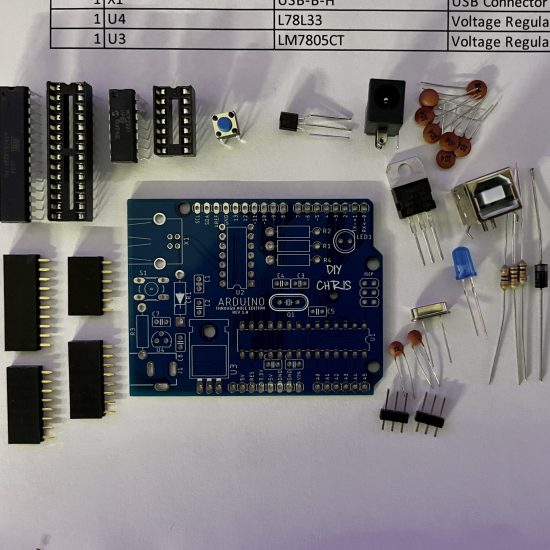

BOM

Arduino Through Hole Edition
Qty Parts Value Description
7 C1, C2, C5, C6, C7, C8, C9 0.1uf Capacitor
2 C3, C4 22pf Capacitor
1 Q1 16Mhz Crystal
1 J1 DCJ0202 DC Barrel Connector
1 CR1 SR206 A0G Diode
1 LED1 RED LED
1 U1 ATMEGA328P-ARDUINO Microcontroller
1 JP2 ANALOG Pin Header
1 JP4 DIGITAL Pin Header
1 JP3 DIGITAL Pin Header
1 JP5 ISCP Pin Header
1 JP1 POWER Pin Header
1 R3 10k Resistor
2 R1, R2 1k Resistor
1 R4 R330 Resistor
1 U2 MCP2221 Serial to USB
1 S1 RESET Tactile Switch
1 X1 USB-B-H USB Connector
1 U4 L78L33 Voltage Regulator 3.3v
1 U3 LM7805CT Voltage Regulator 5v
