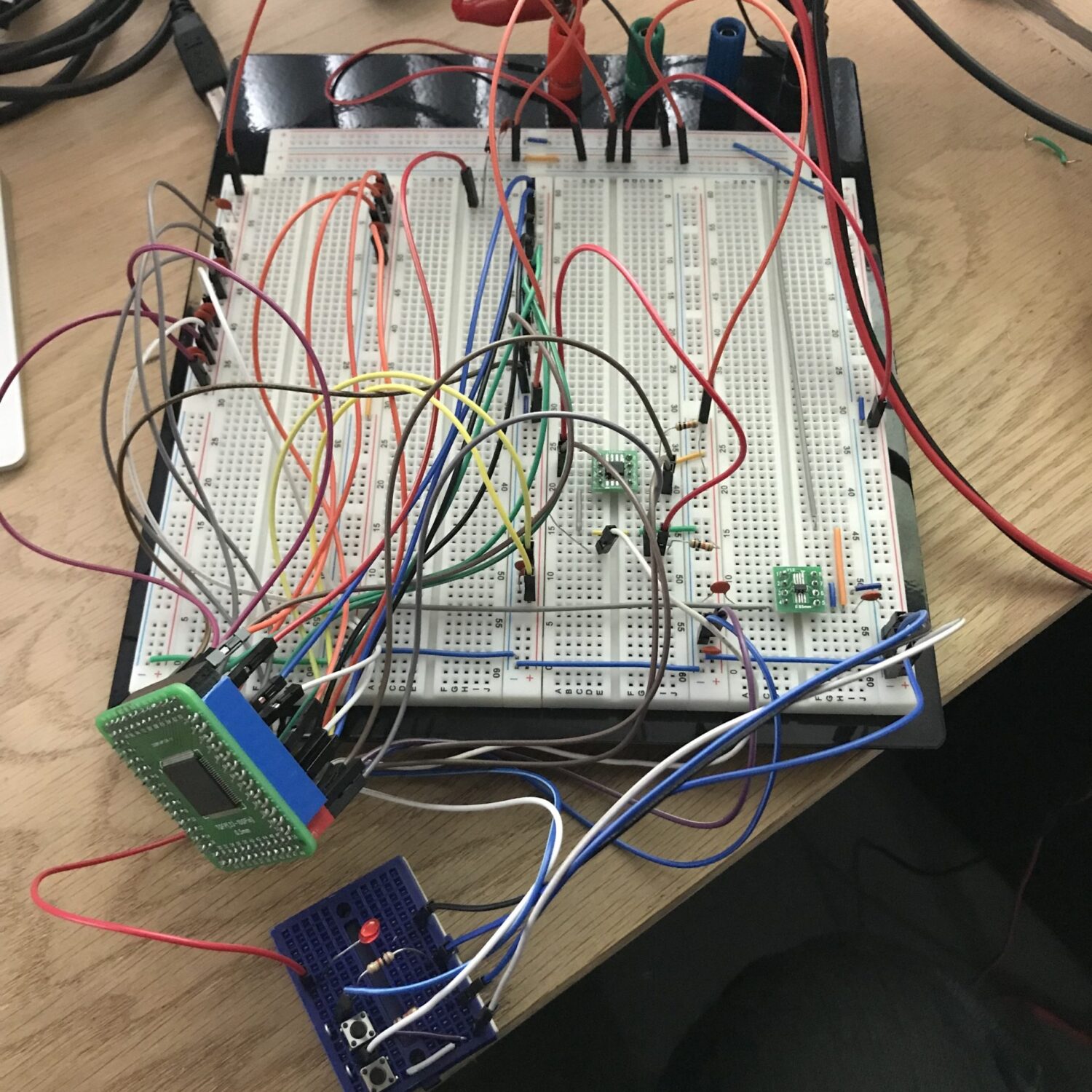

This is right after I connected everything and I do mean everything. There are 4 banks with 3 of them having 2 VCC_IO pins and 1 of them has 3 VCC_IO pins which also makes for a total of 9 ground pins. Then there’s the 4 VCC connections for the core and a VCC and Ground for the SPI as well as a VCC for the NVCM. That’s just power, the other connections are 2 inputs and 1 output for the AND gate circuit and then all of the SPI stuff.
