Amiga 500 68000 CPU Right Angle Relocator

Name: Amiga 500 68000 CPU Right Angle Relocator
SKU: 5278
Availability: InStock

$9.95 – $29.95

DIY Kit

Clear

SKU: N/A Categories: Amiga Things, Kits, Kits Tags: 68000, 68000 relocator, amiga, amiga 500, amiga 500 relocator, amiga cpu relocator, amiga relocator, arduino, Arduino project, arduino through hole, Arduino tht, capacitor, clock, crystal, date, diy, diy computer, electronic kit, electronics, learn to solder, led, microcontroller, pcb, resistor, sockets, solder, solder project, through hole project, voltage

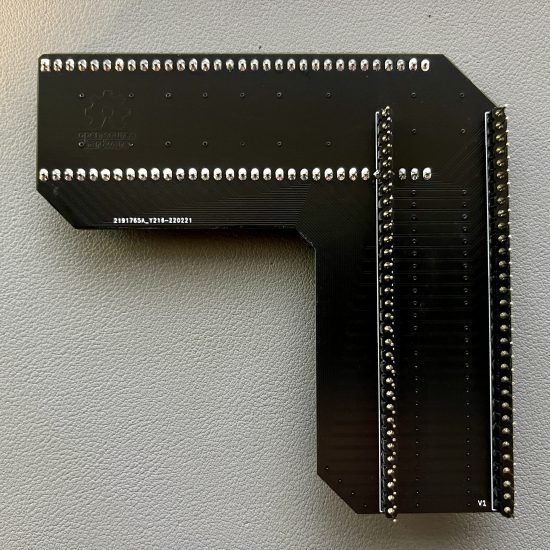

This CPU relocator is shaped at a 90 degree angle to move your CPU up and horizontal leaving extra room for mods that require the use of the CPU socket. Perfect solution if you’re trying to add an IDE controller, Fast RAM module, etc..

Weight	4 oz
Dimensions	1 × 3 × 1 in
DIY Kit	Yes (You build it), No (Built by DIYCHRIS), PCB Only

BOM

Qty	Parts	Value	Description
1	Socket	DIP14	Socket
1	C1	0.1uF	Ceramic Capacitor
1	IC1	74LS02N	Quad 2-input NOR gate
1	PCB	PINHD-2X17	PIN HEADER (Female)
1	PCB_PWR	PINHD-1X4	PIN HEADER (Female)
1	PC_DRIVE	PINHD-2X17	PIN HEADER (Male)
1	DRV_PWR	PINHD-1X4	PIN HEADER (Male)
