Moduliminator

$9.95$39.95

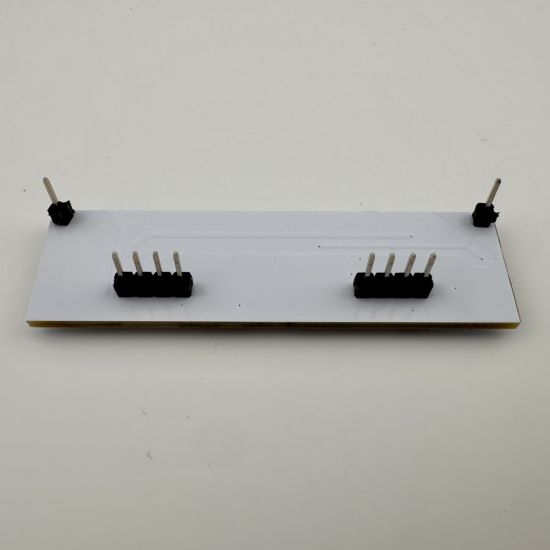

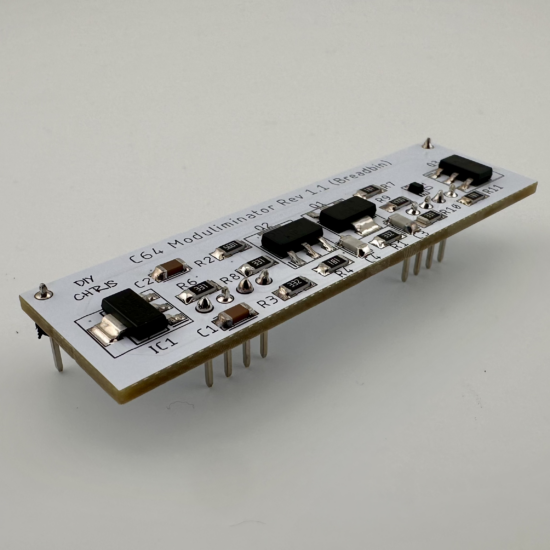

Meet the Moduliminator: a compact device that revolutionizes your Commodore 64’s video output. Effortlessly replacing the old RF modulator, it enhances image clarity and color vibrancy, all while fitting snugly in the original’s space. Compatible with all bread bin C64s, it’s the perfect blend of retro charm and modern performance. Upgrade today and see your classic games in a whole new light!

Introducing the Moduliminator: the ultimate upgrade for your Commodore 64 experience. Crafted for the dedicated enthusiast of retro technology, this sleek and compact device is engineered to replace the bulky RF modulator, fitting precisely into the same slot with only one-third of the original’s size. The Moduliminator is not just about saving space; it’s a significant enhancement to your C64’s video output quality, delivering crisper, more vibrant visuals that will breathe new life into your classic games and programs.

Compatibility is key, and the Moduliminator is meticulously designed to work seamlessly with all bread bin models of the C64. Its installation is a breeze, ensuring that you spend less time tinkering and more time enjoying the nostalgia of your refreshed setup. With its unobtrusive design and powerful performance boost, the Moduliminator is the must-have mod for any Commodore 64 connoisseur looking to preserve the charm of the past while embracing the technological advances of today.

Weight 5 oz
Dimensions 2 × 3 × 1 in
DIY Kit

Yes (You build it), No (Built by DIYCHRIS), PCB Only

BOM

Qty

Parts

Value

Device

Package

2

C3, C4

100pF

Capacitor

C1206

1

C2

1uF

Capacitor

C1206

1

C1

2.2uF

Capacitor

C1206

3

R4, R7, R11

180R

Resistor

R1206

3

R6, R8, R10

330R

Resistor

R1206

2

R1, R3

3k3

Resistor

R1206

1

R9

470R

Resistor

R1206

1

R2

5k6

Resistor

R1206

1

D1

1N4148WS

Diode

SODFL2512X90N

3

Q1, Q2, Q3

DZT2222A-13

NPN Transistor

SOT230P700X175-4N

1

IC1

TLV76150DCYR

Voltage Regulator

SOT230P700X180-4N
