Commodore 64 – 250407 – MELIUS (First Batch)

$25.00

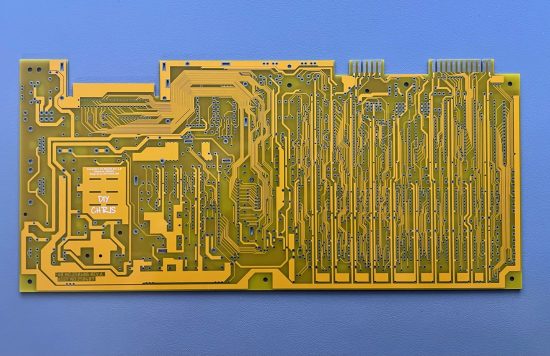

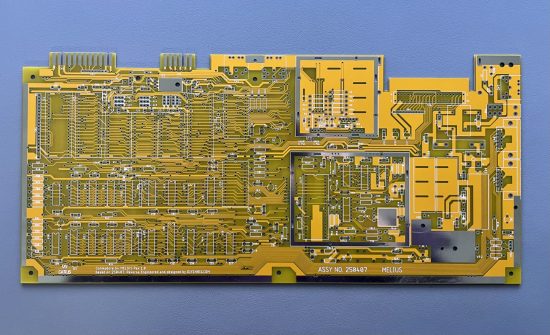

Here’s your chance to own a brand new Commodore 64 – MELIUS main board. The revision is 250407, Artwork 251137.

Project MELIUS is dedicated to improving the original Commodore 64 while staying as true to the original as possible.

This first iteration of project MELIUS boards features the following improvements:

  • RF Modulator Bypass Circuitry – This modification allows you to be free from the RF modulator component by soldering a handful of components to the board which will bring you an improved quality video signal. You can also choose to use the original RF modulator instead. Your choice.
  • EEPROM upgrades – The Basic, Kernal and Character ROM’s have been replaced with 27C512 EEPROM’s. This means that you can burn a ROM and directly plug it into your C64’s mainboard. What’s even better is that because the 27C512 have 64K of space, you can store up to 8 ROM images for both Basic and Kernal ROM’s and up to 16 variations of the character ROM and then quickly select between them by moving around some jumpers.
  • Connector Footprint Updates – This will help with hunting down various connectors for the IEC, A/V and power ports. Especially the power port connectors. Finding these with the 5mm pin spacing for the ground shield is very difficult. This allows you to easily pop in modern replacements.

This is a first batch run. It just happens that my first batch of boards were 100% functional and I have a surplus so I decided to sell them.

Out of stock

Here’s your chance to own a brand new Commodore 64 – MELIUS main board. The revision is 250407, Artwork 251137.

Project MELIUS is dedicated to improving the original Commodore 64 while staying as true to the original as possible.

This first iteration of project MELIUS boards features the following improvements:

  • RF Modulator Bypass Circuitry – This modification allows you to be free from the RF modulator component by soldering a handful of components to the board which will bring you an improved quality video signal. You can also choose to use the original RF modulator instead. Your choice.
  • EEPROM upgrades – The Basic, Kernal and Character ROM’s have been replaced with 27C512 EEPROM’s. This means that you can burn a ROM and directly plug it into your C64’s mainboard. What’s even better is that because the 27C512 have 64K of space, you can store up to 8 ROM images for both Basic and Kernal ROM’s and up to 16 variations of the character ROM and then quickly select between them by moving around some jumpers.
  • Connector Footprint Updates – This will help with hunting down various connectors for the IEC, A/V and power ports. Especially the power port connectors. Finding these with the 5mm pin spacing for the ground shield is very difficult. This allows you to easily pop in modern replacements.

This is a first batch run. It just happens that my first batch of boards were 100% functional and I have a surplus so I decided to sell them.

Note: Being first batch run boards there was bound to be a mistake, its not a big mistake. There’s a small issue with the footprint for the 2 transistors in the RF bypass section. Don’t worry though, if you purchase one of these boards they’ll come with instructions on how to bypass the problem.

I am planning on continuously improving this board.

The primary difference between these and the production boards will be the finish.

These have a finish known as HASL which is a tin / lead plating on the copper layers and can wear down over time if exposed to excessive friction, mainly the user and cassette port. The production boards will use a finish known as ENIG which offers a flat surface, longer shelf life and is also lead free and RoHS compliant.

Don’t miss your opportunity to own 1 of only 5 in existence of an official DIY Chris C64 250407 MELIUS first ever in existence. Who knows, I may become famous one day hahaha..

Weight 8 oz
Dimensions 9 × 16 × 1 in
Include Parts

YES, NO

Solder Parts

YES, NO

RF Modulator Bypass

To use the RF modulator bypass circuit you’ll need these additional components.

T1, T2 – BC547
R14, R15, R18 – 150 ohm 1/2 watt
R8 – 1K
R9 – 3.3K
R10 – 5.6K
R11 – 68 ohm
R12 – 220 ohm
R13 – 75 ohm
R20 – 470 ohm
L6 – 10uH
CR3 – 1N4148
C35 – 330pF
C55 – 68pF

Optional:

You can choose to get these 2 trimmer resistors but they are not necessary. When not using the trimmer resistors you can close solder bridges at SJ1 and SJ2.

RV1 – 1K Multi-turn Trimmer
RV2 – 220 ohm Multi-turn Trimmer

Note:

This board has a flaw in the bypass circuit that requires the transistors to be placed slightly differently because of the way the footprints were laid out. Please see the reference below:

EEPROMs

Downloads:



How to concatenate ROM images:

In Windows you would simply use the following command:

copy /b romfile1.bin+romfile2.bin romfilecombined.bin



ROM Jumper Settings:

2021.07.14-MELIUS-ROM-JUMPER-SETTINGS
